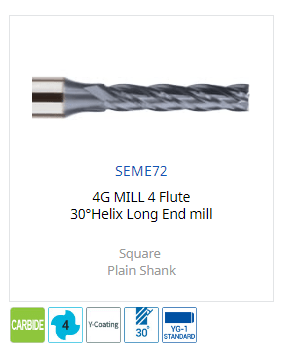

Mũi phay 4 me dài SEME72

Mũi phay 4 me dài SEME72

Giá:



Danh mục: Thương hiệu: ,

Mô tả

EDP No.

 R

 D1

 D2

 L1

 L3

 L2

 Mill Dia. Tolerance

 Shank Dia.Tolerance

 No. of Flute

 Taper Angle
SEME7201003 1 6 3 60 0~-0.030 h5 4
SEME7201003E 1 6 3 60 0~-0.030 h5 4
SEME7201004 1 6 4 60 0~-0.030 h5 4
SEME7201004E 1 6 4 60 0~-0.030 h5 4
SEME7201005 1 6 5 60 0~-0.030 h5 4
SEME7201005E 1 6 5 60 0~-0.030 h5 4
SEME7201006 1 6 6 60 0~-0.030 h5 4
SEME7201006E 1 6 6 60 0~-0.030 h5 4
SEME7201007 1 6 7 60 0~-0.030 h5 4
SEME7201007E 1 6 7 60 0~-0.030 h5 4
SEME7201008 1 6 8 60 0~-0.030 h5 4
SEME7201008E 1 6 8 60 0~-0.030 h5 4
SEME7201010 1 6 10 60 0~-0.030 h5 4
SEME7201010E 1 6 10 60 0~-0.030 h5 4
SEME7201012 1 6 12 60 0~-0.030 h5 4
SEME7201012E 1 6 12 60 0~-0.030 h5 4
SEME7201204 1.2 6 4 60 0~-0.030 h5 4
SEME7201204E 1.2 6 4 60 0~-0.030 h5 4
SEME7201206 1.2 6 6 60 0~-0.030 h5 4
SEME7201206E 1.2 6 6 60 0~-0.030 h5 4
SEME7201208 1.2 6 8 60 0~-0.030 h5 4
SEME7201208E 1.2 6 8 60 0~-0.030 h5 4
SEME7201210 1.2 6 10 60 0~-0.030 h5 4
SEME7201210E 1.2 6 10 60 0~-0.030 h5 4
SEME7201212 1.2 6 12 60 0~-0.030 h5 4
SEME7201212E 1.2 6 12 60 0~-0.030 h5 4
SEME7201506 1.5 6 6 60 0~-0.030 h5 4
SEME7201506E 1.5 6 6 60 0~-0.030 h5 4
SEME7201508 1.5 6 8 60 0~-0.030 h5 4
SEME7201508E 1.5 6 8 60 0~-0.030 h5 4
SEME7201510 1.5 6 10 60 0~-0.030 h5 4
SEME7201510E 1.5 6 10 60 0~-0.030 h5 4
SEME7201512 1.5 6 12 60 0~-0.030 h5 4
SEME7201512E 1.5 6 12 60 0~-0.030 h5 4
SEME7201514 1.5 6 14 60 0~-0.030 h5 4
SEME7201514E 1.5 6 14 60 0~-0.030 h5 4
SEME7201516 1.5 6 16 60 0~-0.030 h5 4
SEME7201516E 1.5 6 16 60 0~-0.030 h5 4
SEME7202008 2 6 8 60 0~-0.030 h5 4
SEME7202008E 2 6 8 60 0~-0.030 h5 4
SEME7202010 2 6 10 60 0~-0.030 h5 4
SEME7202010E 2 6 10 60 0~-0.030 h5 4
SEME7202012 2 6 12 60 0~-0.030 h5 4
SEME7202012E 2 6 12 60 0~-0.030 h5 4
SEME7202014 2 6 14 60 0~-0.030 h5 4
SEME7202014E 2 6 14 60 0~-0.030 h5 4
SEME7202016 2 6 16 60 0~-0.030 h5 4
SEME7202016E 2 6 16 60 0~-0.030 h5 4
SEME7202510 2.5 6 10 60 0~-0.030 h5 4
SEME7202510E 2.5 6 10 60 0~-0.030 h5 4
SEME7202512 2.5 6 12 60 0~-0.030 h5 4
SEME7202512E 2.5 6 12 60 0~-0.030 h5 4
SEME7202516 2.5 6 16 60 0~-0.030 h5 4
SEME7202516E 2.5 6 16 60 0~-0.030 h5 4
SEME7202520 2.5 6 20 60 0~-0.030 h5 4
SEME7202520E 2.5 6 20 60 0~-0.030 h5 4
SEME7202526 2.5 6 26 60 0~-0.030 h5 4
SEME7202526E 2.5 6 26 60 0~-0.030 h5 4
SEME7203010 3 6 10 70 0~-0.030 h5 4
SEME7203010 3 6 12 70 0~-0.030 h5 4
SEME7203010E 3 6 10 70 0~-0.030 h5 4
SEME7203012 3 6 12 70 0~-0.030 h5 4
SEME7203012 3 6 14 70 0~-0.030 h5 4
SEME7203012E 3 6 12 70 0~-0.030 h5 4
SEME7203014 3 3 16 100 0~-0.030 h5 4
SEME7203014 3 6 14 70 0~-0.030 h5 4
SEME7203014E 3 3 14 70 0~-0.030 h5 4
SEME7203016 3 6 16 70 0~-0.030 h5 4
SEME72030163S 3 3 16 100 0~-0.030 h5 4
SEME72030163S 3 6 10 70 0~-0.030 h5 4
SEME72030163SE 3 6 16 100 0~-0.030 h5 4
SEME7203016E 3 6 16 70 0~-0.030 h5 4
SEME7203020 3 6 20 70 0~-0.030 h5 4
SEME7203020E 3 6 20 70 0~-0.030 h5 4
SEME7203026 3 6 26 70 0~-0.030 h5 4
SEME7203026E 3 6 26 70 0~-0.030 h5 4
SEME7203030 3 6 30 70 0~-0.030 h5 4
SEME7203030E 3 6 30 70 0~-0.030 h5 4
SEME7204012 4 6 12 70 0~-0.030 h5 4
SEME7204012 4 6 16 70 0~-0.030 h5 4
SEME7204012E 4 6 12 70 0~-0.030 h5 4
SEME7204016 4 4 20 100 0~-0.030 h5 4
SEME7204016 4 6 16 70 0~-0.030 h5 4
SEME7204016E 4 4 16 70 0~-0.030 h5 4
SEME7204020 4 6 20 70 0~-0.030 h5 4
SEME72040204S 4 4 20 100 0~-0.030 h5 4
SEME72040204S 4 6 12 70 0~-0.030 h5 4
SEME72040204SE 4 6 20 100 0~-0.030 h5 4
SEME7204020E 4 6 20 70 0~-0.030 h5 4
SEME7204026 4 6 26 70 0~-0.030 h5 4
SEME7204026E 4 6 26 70 0~-0.030 h5 4
SEME7204030 4 6 30 70 0~-0.030 h5 4
SEME7204030E 4 6 30 70 0~-0.030 h5 4
SEME7205020 5 6 20 70 0~-0.030 h5 4
SEME7205020E 5 6 20 70 0~-0.030 h5 4
SEME7205025 5 6 25 100 0~-0.030 h5 4
SEME7205025 5 6 25 70 0~-0.030 h5 4
SEME7205025100 5 6 25 100 0~-0.030 h5 4
SEME7205025100 5 6 25 70 0~-0.030 h5 4
SEME7205025100E 5 6 25 70 0~-0.030 h5 4
SEME7205025E 5 6 25 70 0~-0.030 h5 4
SEME7205030 5 6 30 80 0~-0.030 h5 4
SEME7205030E 5 6 30 80 0~-0.030 h5 4
SEME7205035 5 6 35 90 0~-0.030 h5 4
SEME7205035E 5 6 35 90 0~-0.030 h5 4
SEME7205040 5 6 40 100 0~-0.030 h5 4
SEME7205040E 5 6 40 100 0~-0.030 h5 4
SEME7206015 6 6 15 60 0~-0.030 h5 4
SEME7206015 6 6 15 80 0~-0.030 h5 4
SEME7206015080 6 6 15 60 0~-0.030 h5 4
SEME7206015080 6 6 15 80 0~-0.030 h5 4
SEME7206015080E 6 6 15 60 0~-0.030 h5 4
SEME7206015E 6 6 15 80 0~-0.030 h5 4
SEME7206020 6 6 20 70 0~-0.030 h5 4
SEME7206020 6 6 20 90 0~-0.030 h5 4
SEME7206020090 6 6 20 70 0~-0.030 h5 4
SEME7206020090 6 6 20 90 0~-0.030 h5 4
SEME7206020090E 6 6 20 70 0~-0.030 h5 4
SEME7206020E 6 6 20 70 0~-0.030 h5 4
SEME7206025 6 6 25 75 0~-0.030 h5 4
SEME7206025E 6 6 25 75 0~-0.030 h5 4
SEME7206030 6 6 30 100 0~-0.030 h5 4
SEME7206030 6 6 30 80 0~-0.030 h5 4
SEME7206030100 6 6 30 100 0~-0.030 h5 4
SEME7206030100 6 6 30 150 0~-0.030 h5 4
SEME7206030100E 6 6 30 100 0~-0.030 h5 4
SEME7206030150 6 6 30 150 0~-0.030 h5 4
SEME7206030150 6 6 30 80 0~-0.030 h5 4
SEME7206030150E 6 6 30 150 0~-0.030 h5 4
SEME7206030E 6 6 30 80 0~-0.030 h5 4
SEME7206035 6 6 35 90 0~-0.030 h5 4
SEME7206035E 6 6 35 90 0~-0.030 h5 4
SEME7206040 6 6 40 120 0~-0.030 h5 4
SEME7206040 6 6 40 90 0~-0.030 h5 4
SEME7206040120 6 6 40 120 0~-0.030 h5 4
SEME7206040120 6 6 40 90 0~-0.030 h5 4
SEME7206040120E 6 6 40 120 0~-0.030 h5 4
SEME7206040E 6 6 40 90 0~-0.030 h5 4
SEME7206045 6 6 45 150 0~-0.030 h5 4
SEME7206045E 6 6 45 150 0~-0.030 h5 4
SEME7208025 8 8 25 80 0~-0.030 h5 4
SEME7208025E 8 8 25 80 0~-0.030 h5 4
SEME7208030 8 8 30 100 0~-0.030 h5 4
SEME7208030 8 8 30 80 0~-0.030 h5 4
SEME7208030100 8 8 30 100 0~-0.030 h5 4
SEME7208030100 8 8 30 80 0~-0.030 h5 4
SEME7208030100E 8 8 30 100 0~-0.030 h5 4
SEME7208030E 8 8 30 80 0~-0.030 h5 4
SEME7208035 8 8 35 90 0~-0.030 h5 4
SEME7208035E 8 8 35 90 0~-0.030 h5 4
SEME7208040 8 8 40 120 0~-0.030 h5 4
SEME7208040 8 8 40 90 0~-0.030 h5 4
SEME7208040120 8 8 40 120 0~-0.030 h5 4
SEME7208040120 8 8 40 150 0~-0.030 h5 4
SEME7208040120E 8 8 40 120 0~-0.030 h5 4
SEME7208040150 8 8 40 150 0~-0.030 h5 4
SEME7208040150 8 8 40 90 0~-0.030 h5 4
SEME7208040150E 8 8 40 150 0~-0.030 h5 4
SEME7208040E 8 8 40 90 0~-0.030 h5 4
SEME7208045 8 8 45 100 0~-0.030 h5 4
SEME7208045E 8 8 45 100 0~-0.030 h5 4
SEME7208050 8 8 50 100 0~-0.030 h5 4
SEME7208050 8 8 50 150 0~-0.030 h5 4
SEME7208050150 8 8 50 100 0~-0.030 h5 4
SEME7208050150 8 8 50 150 0~-0.030 h5 4
SEME7208050150E 8 8 50 150 0~-0.030 h5 4
SEME7208050E 8 8 50 80 0~-0.030 h5 4
SEME7210030 10 10 30 100 0~-0.030 h5 4
SEME7210030 10 10 30 80 0~-0.030 h5 4
SEME7210030100 10 10 30 100 0~-0.030 h5 4
SEME7210030100 10 10 30 80 0~-0.030 h5 4
SEME7210030100E 10 10 30 100 0~-0.030 h5 4
SEME7210030E 10 10 30 100 0~-0.030 h5 4
SEME7210035 10 10 35 90 0~-0.030 h5 4
SEME7210035E 10 10 35 90 0~-0.030 h5 4
SEME7210040 10 10 40 120 0~-0.030 h5 4
SEME7210040 10 10 40 90 0~-0.030 h5 4
SEME7210040120 10 10 40 120 0~-0.030 h5 4
SEME7210040120 10 10 40 90 0~-0.030 h5 4
SEME7210040120E 10 10 40 120 0~-0.030 h5 4
SEME7210040E 10 10 40 90 0~-0.030 h5 4
SEME7210045 10 10 45 100 0~-0.030 h5 4
SEME7210045E 10 10 45 100 0~-0.030 h5 4
SEME7210050 10 10 50 100 0~-0.030 h5 4
SEME7210050 10 10 50 150 0~-0.030 h5 4
SEME7210050150 10 10 50 150 0~-0.030 h5 4
SEME7210050150 10 10 50 200 0~-0.030 h5 4
SEME7210050150E 10 10 50 150 0~-0.030 h5 4
SEME7210050200 10 10 50 100 0~-0.030 h5 4
SEME7210050200 10 10 50 200 0~-0.030 h5 4
SEME7210050200E 10 10 50 200 0~-0.030 h5 4
SEME7210050E 10 10 50 100 0~-0.030 h5 4
SEME7210055 10 10 55 150 0~-0.030 h5 4
SEME7210055E 10 10 55 150 0~-0.030 h5 4
SEME7210060 10 10 60 110 0~-0.030 h5 4
SEME7210060 10 10 60 200 0~-0.030 h5 4
SEME7210060200 10 10 60 110 0~-0.030 h5 4
SEME7210060200 10 10 60 200 0~-0.030 h5 4
SEME7210060200E 10 10 60 200 0~-0.030 h5 4
SEME7210060E 10 10 60 110 0~-0.030 h5 4
SEME7212035 12 12 35 90 0~-0.030 h5 4
SEME7212035E 12 12 35 90 0~-0.030 h5 4
SEME7212040 12 12 40 100 0~-0.030 h5 4
SEME7212040 12 12 40 120 0~-0.030 h5 4
SEME7212040120 12 12 40 100 0~-0.030 h5 4
SEME7212040120 12 12 40 120 0~-0.030 h5 4
SEME7212040120E 12 12 40 120 0~-0.030 h5 4
SEME7212040E 12 12 40 100 0~-0.030 h5 4
SEME7212045 12 12 45 130 0~-0.030 h5 4
SEME7212045E 12 12 45 130 0~-0.030 h5 4
SEME7212050 12 12 50 100 0~-0.030 h5 4
SEME7212050 12 12 50 150 0~-0.030 h5 4
SEME7212050150 12 12 50 100 0~-0.030 h5 4
SEME7212050150 12 12 50 150 0~-0.030 h5 4
SEME7212050150E 12 12 50 150 0~-0.030 h5 4
SEME7212050E 12 12 50 100 0~-0.030 h5 4
SEME7212055 12 12 55 110 0~-0.030 h5 4
SEME7212055E 12 12 55 110 0~-0.030 h5 4
SEME7212060 12 12 60 110 0~-0.030 h5 4
SEME7212060 12 12 60 150 0~-0.030 h5 4
SEME7212060150 12 12 60 150 0~-0.030 h5 4
SEME7212060150 12 12 60 200 0~-0.030 h5 4
SEME7212060150E 12 12 60 150 0~-0.030 h5 4
SEME7212060200 12 12 60 110 0~-0.030 h5 4
SEME7212060200 12 12 60 200 0~-0.030 h5 4
SEME7212060200E 12 12 60 200 0~-0.030 h5 4
SEME7212060E 12 12 60 110 0~-0.030 h5 4
SEME7212065 12 12 65 150 0~-0.030 h5 4
SEME7212065E 12 12 65 150 0~-0.030 h5 4
SEME7212070 12 12 70 120 0~-0.030 h5 4
SEME7212070 12 12 70 200 0~-0.030 h5 4
SEME7212070200 12 12 70 120 0~-0.030 h5 4
SEME7212070200 12 12 70 200 0~-0.030 h5 4
SEME7212070200E 12 12 70 200 0~-0.030 h5 4
SEME7212070E 12 12 70 200 0~-0.030 h5 4
SEME7214050 14 16 50 110 0~-0.030 h5 4
SEME7214050E 14 16 50 110 0~-0.030 h5 4
SEME7214060 14 16 60 150 0~-0.030 h5 4
SEME7214060E 14 16 60 150 0~-0.030 h5 4
SEME72160110 16 16 110 200 0~-0.030 h5 4
SEME72160110 16 16 80 150 0~-0.030 h5 4
SEME72160110E 16 16 110 200 0~-0.030 h5 4
SEME72160120 16 16 120 250 0~-0.030 h5 4
SEME72160120 16 16 90 150 0~-0.030 h5 4
SEME72160120E 16 16 120 250 0~-0.030 h5 4
SEME7216040 16 16 110 200 0~-0.030 h5 4
SEME7216040 16 16 40 150 0~-0.030 h5 4
SEME7216040E 16 16 40 150 0~-0.030 h5 4
SEME7216050 16 16 120 250 0~-0.030 h5 4
SEME7216050 16 16 50 110 0~-0.030 h5 4
SEME7216050150 16 16 40 150 0~-0.030 h5 4
SEME7216050150 16 16 50 150 0~-0.030 h5 4
SEME7216050150E 16 16 50 150 0~-0.030 h5 4
SEME7216050E 16 16 50 110 0~-0.030 h5 4
SEME7216060 16 16 50 150 0~-0.030 h5 4
SEME7216060 16 16 60 120 0~-0.030 h5 4
SEME7216060E 16 16 60 120 0~-0.030 h5 4
SEME7216070 16 16 50 110 0~-0.030 h5 4
SEME7216070 16 16 70 130 0~-0.030 h5 4
SEME7216070150 16 16 60 120 0~-0.030 h5 4
SEME7216070150 16 16 70 150 0~-0.030 h5 4
SEME7216070150E 16 16 50 150 0~-0.030 h5 4
SEME7216070200 16 16 70 150 0~-0.030 h5 4
SEME7216070200 16 16 70 200 0~-0.030 h5 4
SEME7216070200E 16 16 70 200 0~-0.030 h5 4
SEME7216070E 16 16 70 130 0~-0.030 h5 4
SEME7216080 16 16 70 200 0~-0.030 h5 4
SEME7216080 16 16 80 150 0~-0.030 h5 4
SEME7216080E 16 16 80 150 0~-0.030 h5 4
SEME7216090 16 16 70 130 0~-0.030 h5 4
SEME7216090 16 16 90 150 0~-0.030 h5 4
SEME7216090E 16 16 90 150 0~-0.030 h5 4
SEME72180100 18 20 100 200 0~-0.030 h5 4
SEME72180100 18 20 70 130 0~-0.030 h5 4
SEME72180100E 18 20 100 200 0~-0.030 h5 4
SEME7218050 18 20 100 200 0~-0.030 h5 4
SEME7218050 18 20 50 120 0~-0.030 h5 4
SEME7218050E 18 20 50 120 0~-0.030 h5 4
SEME7218070 18 20 50 120 0~-0.030 h5 4
SEME7218070 18 20 70 130 0~-0.030 h5 4
SEME7218070E 18 20 70 130 0~-0.030 h5 4
SEME72200110 20 20 110 200 0~-0.030 h5 4
SEME72200110 20 20 90 200 0~-0.030 h5 4
SEME72200110E 20 20 110 200 0~-0.030 h5 4
SEME72200120 20 20 120 250 0~-0.030 h5 4
SEME72200120 20 20 90 150 0~-0.030 h5 4
SEME72200120E 20 20 120 250 0~-0.030 h5 4
SEME7220050 20 20 110 200 0~-0.030 h5 4
SEME7220050 20 20 50 110 0~-0.030 h5 4
SEME7220050150 20 20 120 250 0~-0.030 h5 4
SEME7220050150 20 20 50 150 0~-0.030 h5 4
SEME7220050150E 20 20 50 150 0~-0.030 h5 4
SEME7220050E 20 20 50 110 0~-0.030 h5 4
SEME7220060 20 20 50 150 0~-0.030 h5 4
SEME7220060 20 20 60 130 0~-0.030 h5 4
SEME7220060E 20 20 60 130 0~-0.030 h5 4
SEME7220070 20 20 50 110 0~-0.030 h5 4
SEME7220070 20 20 70 130 0~-0.030 h5 4
SEME7220070E 20 20 70 130 0~-0.030 h5 4
SEME7220080 20 20 60 130 0~-0.030 h5 4
SEME7220080 20 20 80 150 0~-0.030 h5 4
SEME7220080E 20 20 80 150 0~-0.030 h5 4
SEME7220090 20 20 70 130 0~-0.030 h5 4
SEME7220090 20 20 90 150 0~-0.030 h5 4
SEME7220090200 20 20 80 150 0~-0.030 h5 4
SEME7220090200 20 20 90 200 0~-0.030 h5 4
SEME7220090200E 20 20 90 200 0~-0.030 h5 4
SEME7220090E 20 20 90 150 0~-0.030 h5 4
SEME72220110 22 20 110 200 0~-0.030 h5 4
SEME72220110 22 20 75 150 0~-0.030 h5 4
SEME72220110E 22 20 110 200 0~-0.030 h5 4
SEME7222075 22 20 110 200 0~-0.030 h5 4
SEME7222075 22 20 75 150 0~-0.030 h5 4
SEME7222075E 22 20 75 150 0~-0.030 h5 4
SEME72250110 25 25 110 200 0~-0.030 h5 4
SEME72250110 25 25 70 150 0~-0.030 h5 4
SEME72250110E 25 25 110 200 0~-0.030 h5 4
SEME72250120 25 25 120 250 0~-0.030 h5 4
SEME72250120 25 25 90 150 0~-0.030 h5 4
SEME72250120E 25 25 120 250 0~-0.030 h5 4
SEME7225070 25 25 110 200 0~-0.030 h5 4
SEME7225070 25 25 70 150 0~-0.030 h5 4
SEME7225070E 25 25 70 150 0~-0.030 h5 4
SEME7225090 25 25 120 250 0~-0.030 h5 4
SEME7225090 25 25 90 150 0~-0.030 h5 4
SEME7225090E 25 25 90 150 0~-0.030 h5 4
Yêu cầu báo giá

    Yêu cầu hỗ trợ báo giá nhanh, khách hàng vui lòng liên hệ Hotline 091 236 1906

    Rất tiếc ! Sản phẩm này chưa có Video giới thiệu.

    Sản phẩm tương tự
